Sources and connectors

meilisearch-cdc reads changes from eleven kinds of sources. A connector stores how to reach one source; tasks pick a connector and add the table.

Supported sources

Source	Type id	Capture method	Snapshot	TRUNCATE / drop
PostgreSQL	`postgres`	Logical replication, `pgoutput`	Keyset pages of 5,000 rows	Captured
MySQL 8	`mysql`	Binary log (as a replica)	Keyset pages of 5,000 rows	Captured
MariaDB	`mariadb`	Binary log (as a replica)	Keyset pages of 5,000 rows	Captured
MongoDB	`mongodb`	Change streams	Collection scan	Drop, rename, dropDatabase
DynamoDB	`dynamodb`	DynamoDB Streams	Parallel scan (4 segments)	No
CouchDB / Cloudant	`couchdb`	`_changes` feed (longpoll)	`_all_docs` pages	No
SQL Server	`sqlserver`	Native CDC change tables	Keyset pages of 5,000 rows	No
CockroachDB	`cockroachdb`	Core (sinkless) changefeed	Consistent read `AS OF SYSTEM TIME`	No
Kafka (Debezium)	`kafka`	Debezium JSON envelopes	Topic replay, folded per key	Debezium `op: t`
Redis Streams	`redis`	`XREAD`	Stream replay, folded per key	`op truncate` entries
SQL polling	`sqlpoll`	Incremental cursor column (PostgreSQL, MySQL, SQLite drivers)	Keyset pages of 1,000 rows	No
Webhook	`webhook`	HTTP push to `/api/v1/ingest/{task}`	None (push only)	`{"op":"truncate"}`

When a source reports a truncate, the task is held unless the task allows it (sync.safety.allowTruncate); with it allowed, every document of the index is deleted. See safety guards.

Connectors

A connector is a saved source connection: its type and the connection fields of that type. Credentials are stored once, encrypted, and never returned by the API (passwords in connection strings and DynamoDB secret keys come back masked as ••••••). Tasks reference a connector with source.connectorId and add only table-level fields.

Type	Connection fields (connector)	Table-level fields (task)
`postgres`	`dsn`	`schema`, `table`, `slot`, `publication`
`mysql`, `mariadb`	`dsn`, `database`	`database`, `table`, `serverId`
`mongodb`	`dsn`, `database`	`database`, `table` (collection)
`dynamodb`	`region`, `endpoint`, `accessKeyId`, `secretAccessKey`	`table`
`kafka`	`brokers`	`groupId`, `table` (topic)
`sqlpoll`	`driver`, `dsn`	`table`, `cursorColumn`, `pollInterval`
`couchdb`	`dsn`	`table` (database)
`sqlserver`	`dsn`	`schema`, `table` (and `slot`, the capture instance, through the API)
`cockroachdb`	`dsn`	`table` (and `schema` through the API)
`redis`	`dsn`	`table` (stream key)
`webhook`	none	`table` (a name for the feed)

A task's database overrides the connector's, so one MySQL or MongoDB connector can serve several databases on the same server.

Testing and browsing

A connector is tested in the background when it is created or saved, and on demand with Test. The result (OK or the error, latency, server version, number of tables) is kept and shown as the last test.

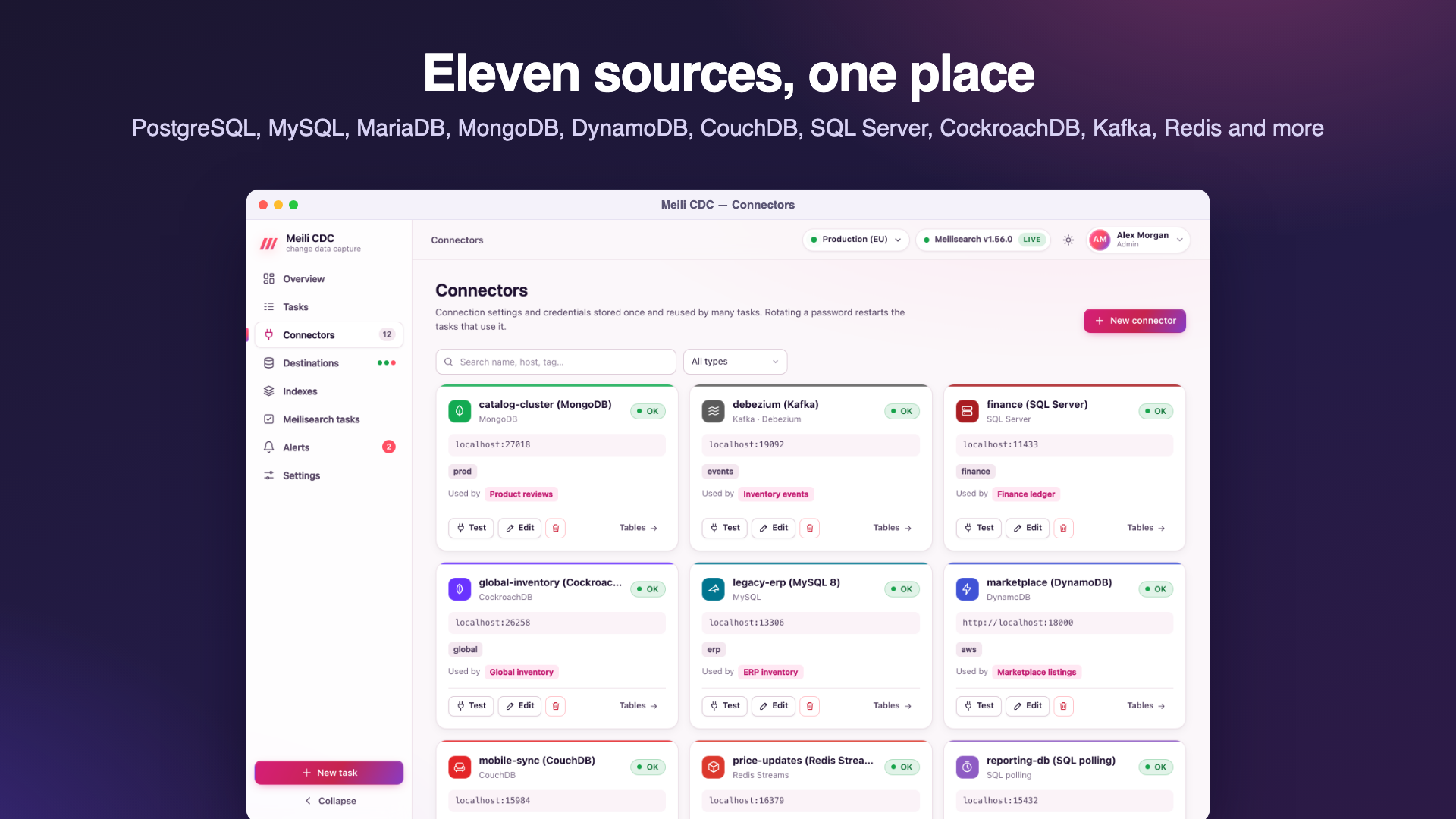

The connector page lists what the connector can see: tables and views, collections, topics, streams or databases, with row estimates when the source provides them (at most 1,000 entries, filterable). Creating a task from a listed table pre-fills the wizard.
Creating, editing, deleting and testing connectors needs the admin role (the route table does not grant connector tests to moderators).

Changing and deleting

Saving a connector with the masked password keeps the stored one. Changing a password restarts the running tasks that use the connector.
A connector that tasks still use cannot be deleted (409 with the list of tasks).

Inline connections

The API and the tasks file also accept the connection fields directly in a task's source (type, dsn, …) without a connector. The dashboard's wizard always works through a connector.

What every source has in common

Validation first. Each source checks its prerequisites when the task starts and fails with a message saying what to change. These are permanent errors: the task goes to failed instead of retrying.
Position before snapshot. The stream position is captured before the snapshot, so changes made during the copy are replayed afterwards.
Lost position → resync. If the stored position no longer exists on the source (purged log, dropped slot, expired shard, trimmed stream), the task logs source position lost and runs a full snapshot again by itself.
A primary key. Documents need an id. It comes from the table's primary key, or from mapping.primaryKey when the source has none or you want another one.
Value conversion. Times become RFC 3339 strings (or Unix seconds or milliseconds, per task), binary values become base64 strings, NaN and infinities become null, and nested JSON stays nested.
